Details
COMMUTE TO WORK, RIDE TO CLASS, FIND NEW ADVENTURES IN YOUR DAILY ROUTINE. THIS FLAT-BAR ALL-ROUNDER WILL GET YOUR LEGS SPINNING AND MOTIVATE YOU TO BE ACTIVE EVERY DAY.
KEY PERFORMANCE FACTORS
Balanced and efficient
Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.
Versatile and capable
Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.
Rugged reliability
Puncture-resistant tires and integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.
TECHS & FEATURES:
ALUXX ALUMINUM TECHNOLOGY
- This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
D-FUSE TECHNOLOGY
- The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, and faster.
OVERDRIVE
- Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

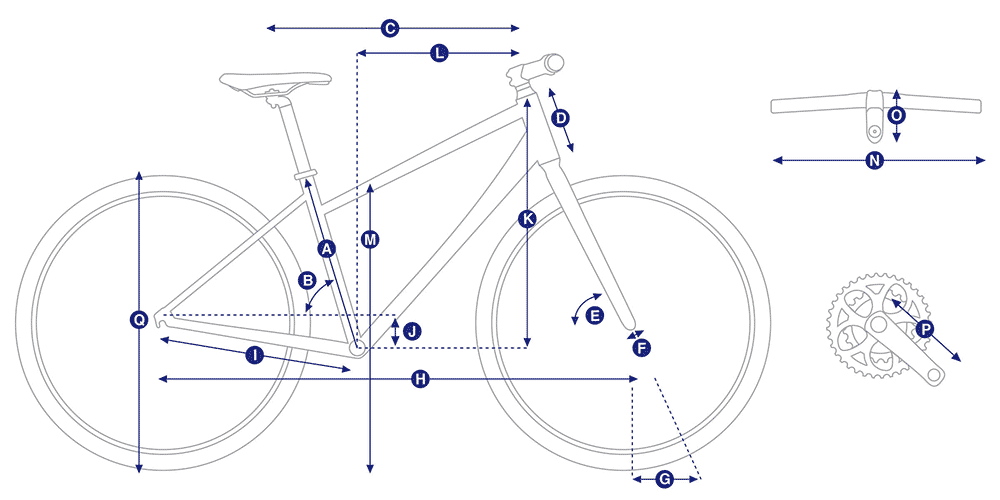

| Small | Medium | Large | X-Large | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 430 | 485 | 535 | 585 |
| B | SEAT TUBE ANGLE | 73.5° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 565 | 580 | 595 | 610 |
| D | HEAD TUBE LENGTH (mm) | 115 | 130 | 160 | 190 |
| E | HEAD TUBE ANGLE | 70.0° | 71.0° | 71.0° | 71.0° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 76 | 69.4 | 69.4 | 69.4 |
| H | WHEELBASE (mm) | 1074 | 1075 | 1091 | 1107 |
| I | CHAIN STAY LENGTH (mm) | 445 | 445 | 445 | 445 |
| J | BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 |
| K | STACK (mm) | 538 | 556 | 585 | 613 |
| L | REACH (mm) | 406 | 410 | 416 | 423 |
| M | STAND OVER HEIGHT (mm) | 714 | 754 | 799 | 842 |
| N | HANDLEBAR WIDTH (mm) | 640 | 640 | 690 | 690 |
| O | STEM LENGTH (mm) | 90 | 90 | 100 | 100 |
| P | CRANK LENGTH (mm) | 170 | 170 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
| Small | 5'3" - 5'7" |
|---|---|
| Medium | 5'7" - 5'11" |
| Large | 5'11" - 6’3" |
| X-Large | 6'3" - 6'7" |
Specs
| Frame | ALUXX-Grade Aluminum, disc |
|---|---|
| Fork | alloy, rack mount, disc |
| Rims | Giant double wall aluminum |
| Hubs | alloy, 28h |
| Spokes | stainless, 14g |
| Tires | Giant S-X2, puncture protect, 700x38c |
| Bottom Bracket | cartridge |
| Crankset | forged alloy, 30/46 XS:170mm, S:170mm, M:170mm, L:175mm, XL:175mm |
| Shifters | Shimano Altus, 2x8 |
| Front Derailleur | Shimano FD-TY710 |
| Rear Derailleur | Shimano Altus |
| Chain | KMC Z8.3 |
| Brakes | Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano |
| Handlebars | Giant Sport XC, 31.8mm XS:60cm, S:64cm, M:64cm, L:68cm, XL:68cm |
| Tape/Grips | Giant ErgoContact |
| Stem | Giant Sport, 15-degree, 31.8mm XS:80mm, S:90mm, M:90mm, L:100mm, XL:100mm |
| Seatpost | Giant D-Fuse, alloy XS:300mm, S:300mm, M:350mm, L:350mm, XL:350mm |
| Saddle | Giant Sport |
| Pedals | Giant Urban Fitness |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Metal / Small | 04712878822269 | 2300115124 | 210000015732 |
