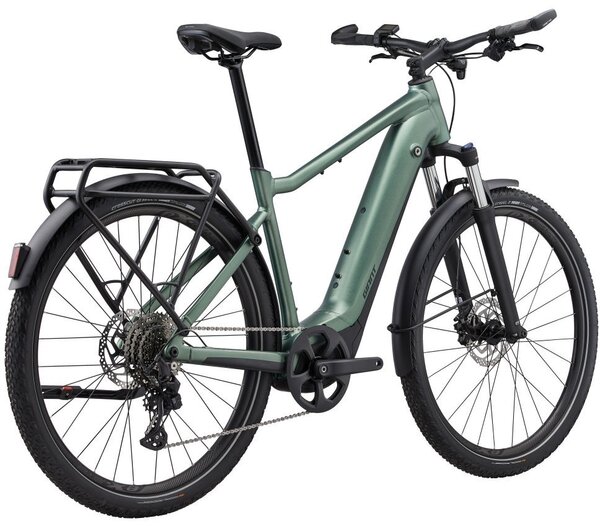

Giant Explore E+ 1

Giant Explore E+ 1
  • Color: Misty Forest
$4,699.00 - $4,899.00
Color: Misty Forest
Size: Select size
Please select options Unavailable

Details

GO BEYOND CITY LIMITS AND FIND NEW ADVENTURES. THE NEW EXPLORE E+ GIVES YOU THE POWER TO RIDE FARTHER WITH A POWERFUL NEW MOTOR AND LONGER RANGE. SMOOTH SUSPENSION AND LARGER TIRES MAKE IT A HIGHLY CAPABLE TREKKER FOR SMOOTH ROADS, GRAVEL OR DIRT.

KEY PERFORMANCE FACTORS:

Smooth ride quality
ALUXX aluminum frameset with a 100mm suspension fork and new SyncDrive motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.

Integrated accessories
RideControl Dash allows you to check range, battery level, and support mode, along with standard cycling data such as speed and distance

Longer Range
EnergyPak battery gives riders the freedom to ride farther.

RANGE
How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK SMART 625 / SYNCDRIVE SPORT 2
Range:
- Extreme: 31 miles
- Good: 62 miles
- Ideal: 111 miles

TECHS & FEATURES:

ENERGYPAK
Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.

ENERGYPAK PLUS
This range extender can boost total capacity by 250Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.

HYBRID CYCLING TECHNOLOGY
Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.

RIDECONTROL DASH
This two-in-one unit features buttons to control support modes plus an integrated color display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices.

SMART ASSIST
All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

SYNCDRIVE SPORT
Innovation, manufacturing expertise and a motor system powered by Yamaha all combine to expand any rider’s abilities. SyncDrive Sport offers three support modes and is equipped on E-bikes that are used for both everyday riding and for more demanding off-road riding. This small mid-drive motor delivers a massive maximum 70Nm of torque and is widely acclaimed for its performance and reliability.

Geometry

Sizes:
MediumLargeX-LargeXX-Large
A SEAT TUBE LENGTH (mm) 435 485 535 585
B SEAT TUBE ANGLE 73.0° 73.0° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 600 610 630 650
D HEAD TUBE LENGTH (mm) 140 155 170 185
E HEAD TUBE ANGLE 69.5° 69.5° 69.5° 69.5°
F FORK RAKE (mm) 51 51 51 51
G TRAIL (mm) 84.3 84.3 84.3 84.3
H WHEELBASE (mm) 1144 1155 1176 1197
I CHAIN STAY LENGTH (mm) 470 470 470 470
J BOTTOM BRACKET DROP (mm) 60 60 60 60
K STACK (mm) 668 682 696 710
L REACH (mm) 396 401 417 433
N HANDLEBAR WIDTH (mm) 690 690 690 690
O STEM LENGTH (mm) 80 100 100 100
P CRANK LENGTH (mm) 170 170 170 170
Q WHEEL SIZE 29" 29" 29" 29"
Sizes:
Medium5'7" to 5'10"
Large 5'9" to 6'1"
X-Large 6'0" to 6'4"
XX-Large 6'3" to 6'7"

Specs

Frame ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Fork SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Rims eX25, Tubeless Ready, 622x25 Aluminum
Hubs Giant eTracker, [F] 110x15 [R] 142x12
Spokes Stainless steel, e-bike optimized
Tires Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Crankset Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Shifters Shimano Deore, LinkGlide
Rear Derailleur Shimano Deore LinkGlide, 10-speed, Shadow+
Cassette/Freewheel Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Chain Shimano LinkGlide, CN-LG500
Brakes Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers Shimano BL-MT201
Handlebars Giant Connect Riser 31.8x690mm
Tape/Grips Gant Connect Ergo Max w/bar-end
Stem Giant Contact (S/M: 80mm L/XL/XXL 100mm)
Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle Selle Royal Vivo Ergo Moderate Unisex
Pedals Aluminum Platform
Accessories & Extras KSA40 direct mount kickstand, Recon E HL50 StVZO [F]AXA NYX 6-12V E-bike tail light with brake sensor [R], ABUS Xplus battery lock, MIK rack. System bag & basket compatible, Alluminum Fenders
Motor SyncDrive Sport 2, 75Nm, powered by Yamaha
Battery EnergyPak Smart 625, EnergyPak Plus 250 range extender compatible
Controller/Display Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W), RideControl Dash, full color lcd screen
Charger Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Misty Forest / Medium 04712878813632 2303720155 210000016093
Misty Forest / Large 04712878813649 2303720157 210000016094
Misty Forest / X-Large 04712878813656 2303720158 210000016095
Misty Forest / XX-Large 04712878813663 2303720159 210000016096
