Giant Fathom 29 2

Giant Fathom 29 2
This item is currently not available.

Details

Crank up steep climbs with smooth efficiency. Swoop down singletrack descents with speed and confidence. This hardtail 29er delivers a balanced ride on XC terrain.

Trail tuned design
Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.

Responsive handling
Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner and hammer the flats with efficiency and speed.

Smooth control
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.

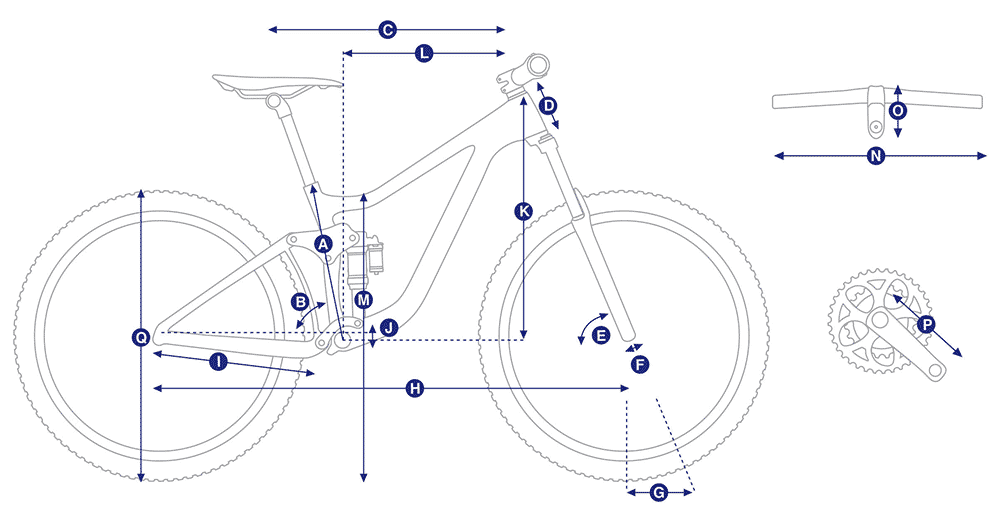

Geometry Chart:
SMLXL
A SEAT TUBE LENGTH (mm) 380 430 465 495
B SEAT TUBE ANGLE 75.0° 75.0° 75.0° 75.0°
C TOP TUBE LENGTH (mm) 592 612 639 662
D HEAD TUBE LENGTH (mm) 95 95 105 115
E HEAD TUBE ANGLE 66.0° 66.0° 66.0° 66.0°
F FORK RAKE (mm) 44 44 44 44
G TRAIL (mm) 122 122 122 122
H WHEELBASE (mm) 1154 1174 1203 1227
I CHAIN STAY LENGTH (mm) 435 435 435 435
J BOTTOM BRACKET DROP (mm) 60 60 60 60
K STACK (mm) 622 622 631 640
L REACH (mm) 425 445 470 490
M STAND OVER HEIGHT (mm) 730 745 765 790
N HANDLEBAR WIDTH (mm) 780 780 780 780
O STEM LENGTH (mm) 40 40 50 50
P CRANK LENGTH (mm) 165 170 170 170
Q WHEEL SIZE 29" 29" 29" 29"
Sizes:
Frame SizeRider Height
Small 5'4" - 5'8"
Medium 5'7" - 5'11"
Large 5'10" - 6'2"
X-Large 6'2" - 6'6"

Specs

Frame ALUXX SL-Grade Aluminum, 12x148mm thru-axle
Fork Giant Crest 34 RCL, 130mm, 44mm offset, Boost 15x110
Rims Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
Hubs alloy, sealed
Spokes stainless
Tires Front: Maxxis Minion DHF, 29x2.5 WT, EXO/TR
Rear: Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T
Bottom Bracket Shimano, threaded
Crankset Shimano Deore, 30t S:170mm, M:170mm, L:170mm, XL:170mm
Shifters Shimano Deore M-4100, 1x10
Rear Derailleur Shimano Deore M-5120
Cassette/Freewheel Shimano Deore M4100, 11x46
Chain KMC X10
Brakes Tektro HDM 275, hydraulic, Tektro rotors [F]180mm, [R]180mm
Brake Levers Tektro HDM 275
Handlebars Giant Contact SL TR35, 780x35mm
Tape/Grips Giant Sole-O
Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm, M: 125mm travel / 30.9 x 395mm, L: 150mm travel / 30.9 x 440mm. XL: 170mm travel / 30.9 x 450mm
Saddle Giant Romero
Pedals Sold separately
Accessories & Extras Tubeless prepared, 2.5" max tire size, 32t max chainring size

* Subject to change without notice.
