Liv Avow Advanced Pro 1

Liv Avow Advanced Pro 1
  • Color: Terracotta
$6,999.00
Color:
Terracotta
Please select options
This item is not available for online purchase.

Details

PERFECT FIT, EASE OF ADJUSTMENT AND AERODYNAMICS CREATE AN UNSTOPPABLE TRIFECTA IN THE WORLD'S FIRST TRULY WOMEN'S PERFORMANCE TRIATHLON BIKE.

KEY PERFORMANCE FACTORS

Absolutely Aerodynamic
From the aero frame design to the wheels, fork, and base bar, Avow vanquishes wind resistance for top speed and performance.

Built for Endurance
An array of body-positioning options conserve energy in key muscle groups for the run. Plus, frame-integrated hydration and storage help keep you fueled.

Powerful
Proprietary oversized bottom bracket and symmetric chainstay design increase stiffness to maximize power transfer.

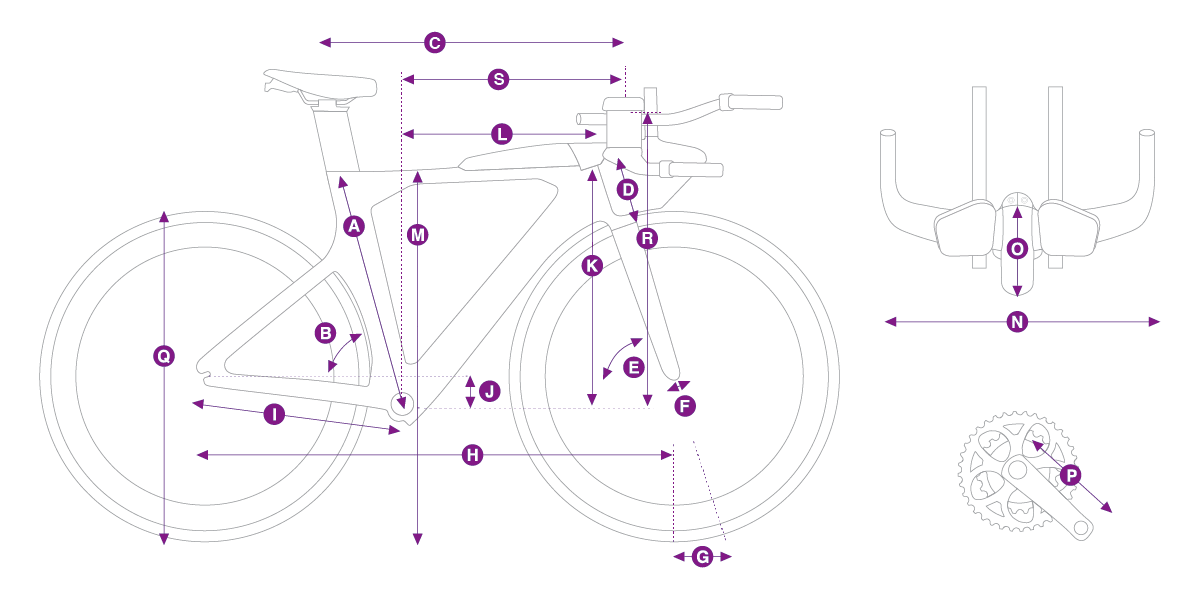

Geometry

Geometry Chart:
XSmallSmallMedium
A SEAT TUBE LENGTH (mm) 480 510 530
B SEAT TUBE ANGLE 77.0° 77.0° 77.0°
C TOP TUBE LENGTH (mm) 500 515 540
E HEAD TUBE ANGLE 72.0° 72.5° 72.5°
F FORK RAKE (mm) 40 40 40
G TRAIL (mm) 68 64 64
H WHEELBASE (mm) 961 974 1001
I CHAIN STAY LENGTH (mm) 405 405 405
J BOTTOM BRACKET DROP (mm) 75 75 75
K STACK (mm) 490 504 534
L REACH (mm) 387 398 417
M STAND OVER HEIGHT (mm) 740 767 788
N HANDLEBAR WIDTH (mm) 400 400 400
O STEM LENGTH (mm) 80 80 80
P CRANK LENGTH (mm) 165 165 165
Q WHEEL SIZE 700C 700C 700C

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Sizes:
X-Small154 cm - 167 cm
Small 160 cm - 173 cm
Medium 167 cm - 180 cm

Specs

Frame Advanced-Grade Composite
Fork Advanced-Grade Composite, alloy OverDrive steerer
Rims Giant P-R2 wheelset
Hubs Giant P-R2 wheelset
Spokes Giant P-R2 wheelset
Tires Giant Gavia AC Lite, tubeless, 700x25c (26.5mm), folding
Bottom Bracket Shimano, press fit
Crankset Shimano Ultegra, 36/52 XS:160mm, S:165mm, M:165mm
Shifters Shimano Ultegra Di2 ST-R8170
Front Derailleur Shimano Ultegra Di2 FD-R8150
Rear Derailleur Shimano Ultegra Di2 RD-R8150
Chain Shimano Ultegra
Brakes Giant SpeedControl SL
Brake Levers Giant Trinity
Handlebars Liv Avow Carbon XXS:36cm, XS:36cm, S:38cm, M:40cm, L:42cm
Tape/Grips Liv Contact Gel
Stem Liv Avow Alloy XS:80mm, S:90mm, M:100mm,
Seatpost Liv Avow Carbon XS:TKmm, S:TKmm, M:TKmm,
Saddle ISM PS1.0
Accessories & Extras Integrated hydration, integrated food storage, misc fairings, AeroVault System, 25mm max tire size

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Terracotta / X-Small 04712878761186 2200055103 210000014346
Terracotta / Small 04712878761193 2200055104 210000014347
Terracotta / Medium 04712878761209 2200055105 210000014348
