Liv Pique 29

Liv Pique 29
This item is currently not available.

Details

IF FAST AND FLOWY TRAILS ARE CALLING YOUR NAME, THE PIQUE 29 IS BEGGING TO COME ALONG. THIS CROSS-COUNTRY BIKE CLIMBS AND DESCENDS WITH CONFIDENCE-INSPIRING STABILITY AND SPEED.

KEY PERFORMANCE FACTORS

Durable
The sturdy ALUXX SL-Grade Aluminum frame is tough and dependable for your most epic adventures.

Capable
29-inch wheels easily roll over small obstacles, while 100mm of Maestro suspension – tuned for women, by women – help absorb rougher trail.

Stable
An integrated dropper seatpost and clearance for up to 2.4-inch tires means you can confidently ride moderately technical terrain.

TECHS & FEATURES:

ADVANCED FORGED COMPOSITE TECHNOLOGY
- A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer, and stronger than similar aluminum components.

ALUXX SL ALUMINUM TECHNOLOGY
- This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.

MAESTRO SUSPENSION TECHNOLOGY
- Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient, and independent suspension system on the trail.

OVERDRIVE
- Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

POWERCORE
- A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

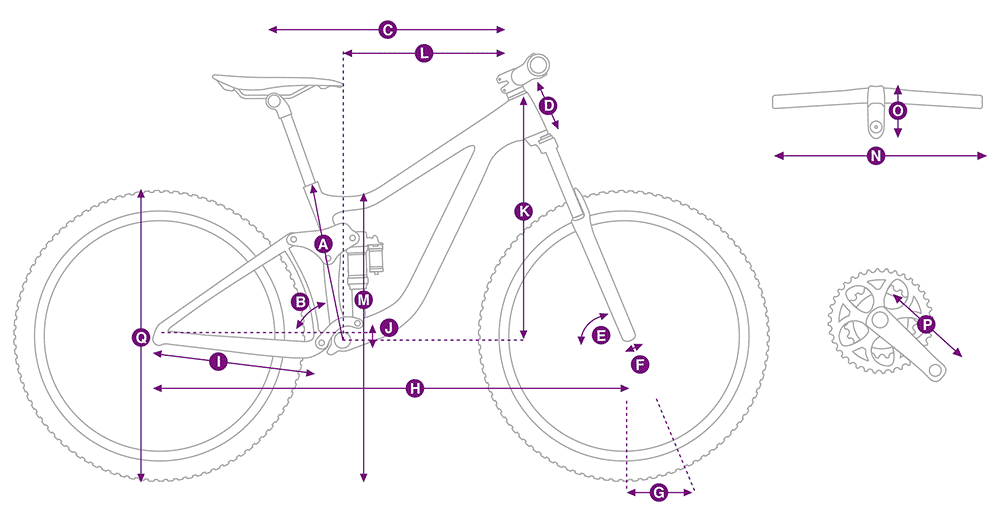

Geometry

Sizes:
X-SmallSmallMediumLarge
A SEAT TUBE LENGTH (mm) 390 406 445 482
B SEAT TUBE ANGLE 74.0° 74.0° 74.0° 74.0°
C TOP TUBE LENGTH (mm) 565 580 595 610
D HEAD TUBE LENGTH (mm) 90 95 100 110
E HEAD TUBE ANGLE 68.5° 68.5° 68.5° 68.5°
F FORK RAKE (mm) 51 51 51 51
G TRAIL (mm) 92.9 92.9 92.9 92.9
H WHEELBASE (mm) 1100 1115 1131 1147
I CHAIN STAY LENGTH (mm) 438 438 438 438
J BOTTOM BRACKET DROP (mm) 45 45 45 45
K STACK (mm) 578 583 587 597
L REACH (mm) 399 413 427 439
M STAND OVER HEIGHT (mm) 694 703 724 755
N HANDLEBAR WIDTH (mm) 720 720 740 740
O STEM LENGTH (mm) 50 50 60 70
P CRANK LENGTH (mm) 165 170 170 175
Q WHEEL SIZE 29" 29" 29" 29"
Sizes:
X-Small4'10" - 5'4"
Small 5'2" - 5'7"
Medium 5'5" - 5’9"
Large 5'7" - 6'0"

Specs

Frame ALUXX SL-Grade Aluminum, 100mm Maestro Suspension
Fork RockShox Recon RL Silver, 100mm, Boost 15x110, tapered, 44mm offset, custom tuned for Liv
Rear Shock Fox Float DPS Performance 165/45, custom tuned for Liv
Rims Giant XCT 29, tubeless ready, sleeve-joint, 25mm inner width
Hubs [F] Shimano 15x110, sealed bearing , [R] Shimano 12x148, sealed bearing
Spokes Sapim
Tires [F] Maxxis Recon Race, 29x2.35, foldable, TLR, EXO, tubeless [R] Maxxis Recon Race, 29x2.25, foldable, TLR, EXO, tubeless
Bottom Bracket Praxis, press fit
Crankset Praxis Cadet Boost, steel chainring 30t XS:165mm, S:170mm, M:170mm, L:175mm
Shifters Shimano Deore M6100, 1x12
Rear Derailleur Shimano Deore M6100, Shadow +
Cassette/Freewheel Shimano Deore M6100, 10x51
Chain KMC X-12
Brakes Shimano MT410, hydraulic, Shimano RT-56 rotors [F]180mm, [R]160mm
Brake Levers Shimano MT-401
Handlebars Giant Contact SLR XC 35 760x35mm
Tape/Grips Liv Supera, single lock ring
Stem Giant Contact SL XC, 35mm XS:50mm, S:50mm, M:60mm, L:70mm
Seatpost Giant Contact Switch dropper, remote XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm M: 1
Saddle Fi'zi:k Vento Argo R5
Pedals Sold separately

* Subject to change without notice.
